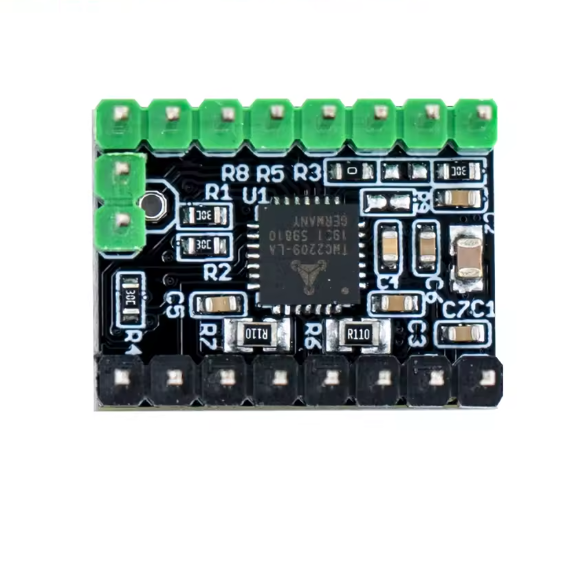

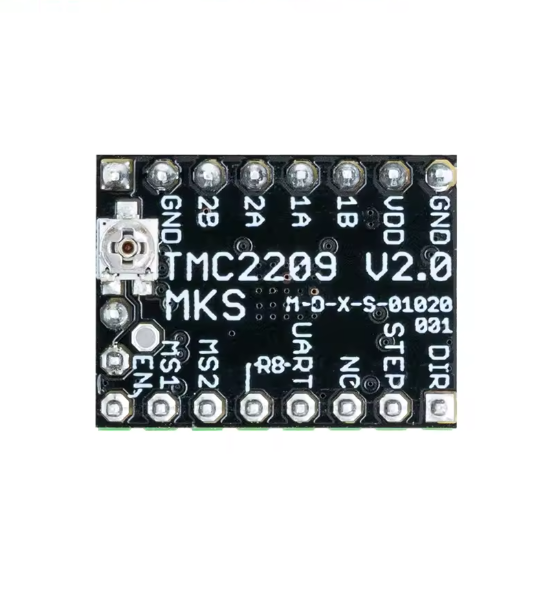

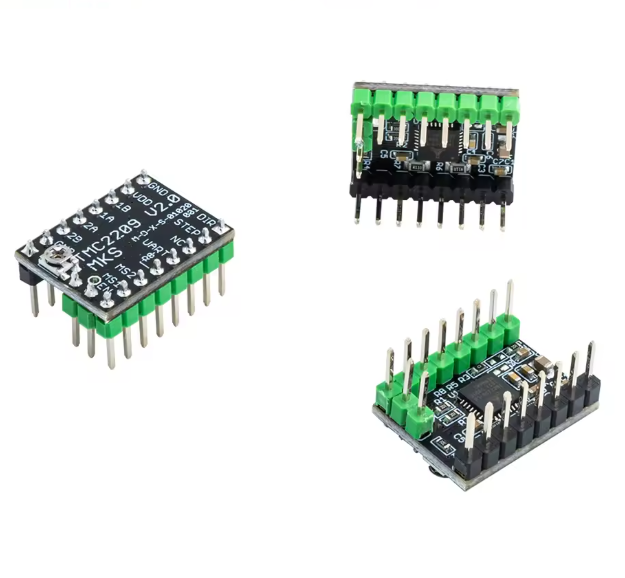

MKS TMC2209 V2.0: Silent Driver with Sensorless Homing and 2.0A RMS Current
The Ultimate Upgrade: Features StealthChop2™, StallGuard4™ (Sensorless Homing), and Full UART/SPI Control for High-Speed, Endstop-Free Operation.
€12.30
Introduction: Unmatched Precision, Power, and Silence
The Makerbase MKS TMC2209 V2.0 is the pinnacle of modern stepper motor control, integrating the highly demanded features of ultra-silent operation and Sensorless Homing into one compact package. This driver is the definitive choice for makers looking to maximize their 3D printer or CNC machine's speed, simplicity, and component longevity.
With a significantly higher continuous current capacity than the TMC2208 and support for both UART and SPI modes, the TMC2209 is ready for the most demanding open-source control boards and Klipper/Marlin firmware configurations.
Key Features and Advanced Maker Advantages
Technical Feature | Benefit for the Advanced Maker |
StallGuard4™ (Sensorless Homing) | Eliminates the need for physical endstop switches on X and Y axes, simplifying wiring, reducing component count, and providing a cleaner build. |
High Continuous Current | Supports up to 2.0A RMS (2.8A peak), providing higher torque and better performance for larger or heavier machine axes compared to the 1.4A of the TMC2208. |
StealthChop2™ Technology | The second generation of Trinamic's silent mode ensures whisper-quiet movement at both low and high speeds, making your machine virtually silent. |
Full UART/SPI Control | Allows full configuration via the main control board's firmware, letting you dynamically change current, microsteps, and activate StallGuard4 and CoolStep™ for intelligent power consumption. |
CoolStep™ Power Saving | Reduces motor current by up to 75% when the motor is idle or lightly loaded, leading to cooler running temperatures and significantly less power consumption. |
Microstep Interpolation | Achieves extremely smooth motion by interpolating 16 microsteps into 256 microsteps, ensuring perfect printing surface quality. |
Technical Summary
Chip: TMC2209
Microsteps: 1/256 (via MicroPlyer)
Continuous Current: 2.0A (RMS) / 2.8A (Peak)
Voltage Range: 4.75V to 28V
Modes: STEP/DIR, UART, and SPI
Advanced Features: Sensorless Homing (StallGuard4) and CoolStep™
Upgrade to the Best: Silence, Speed, and Simplicity
The MKS TMC2209 V2.0 is more than just a quiet driver—it's a performance upgrade that streamlines your build with Sensorless Homing and boosts efficiency with CoolStep. Give your open-source project the best motion control available.
