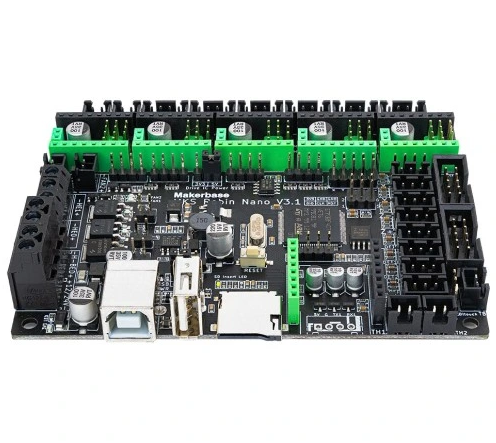

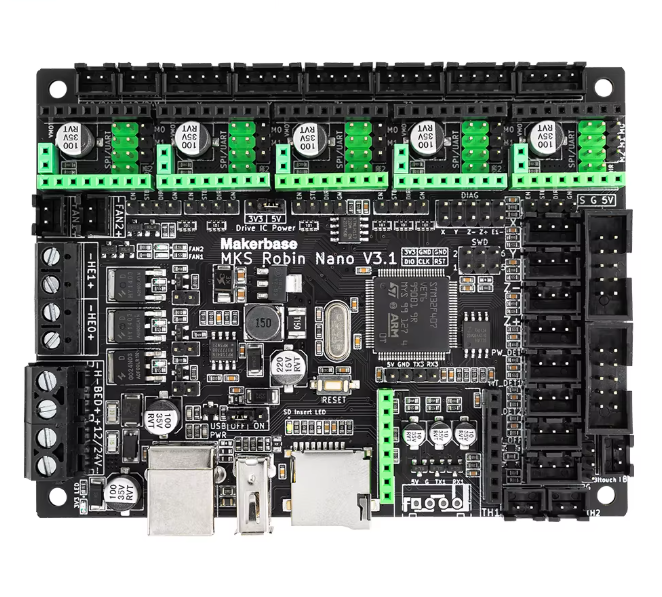

MKS Robin Nano V3.1: 32-Bit F407 Control Board for Advanced Open-Source 3D Printing
Unleash Klipper/Marlin Power with 168MHz MCU, 6 Axis Support, and USB Disk Printing for Ultimate Flexibility and Speed.
€35.00
Introduction: The Next Evolution in 3D Printer Control
The Makerbase MKS Robin Nano V3.1 is the high-performance 32-bit heart designed to revolutionize your DIY 3D printer. This board takes the open-source control platform to the next level, featuring a robust STM32F407VET6 microcontroller with a Cortex-M4 core running at a blazing 168MHz.
With full compatibility for both Marlin 2.0.x and Klipper firmware, the Robin Nano V3.1 provides the speed, stability, and resource capacity necessary for complex features like high-speed printing, advanced auto-bed leveling, and networked control. It is the perfect upgrade for makers seeking unmatched precision and control over their fabrication projects.
Key Features and Performance Advantages
Technical Feature | Benefit for the Maker Community |
High-Speed 32-Bit MCU | 168MHz STM32F407 provides superior processing power, handling complex calculations faster for smoother movements and finer printing details. |
6-Axis Stepper Interface | Dedicated sockets (5 total) with support for dual Z-axis configurations, perfect for large, multi-motor machines and demanding motion control setups. |
Swappable Stepper Drivers | Supports UART/SPI modes for silent and high-precision drivers like TMC2209/2208, as well as traditional drivers (A4988), allowing for full customization and future upgrades. |
USB Disk Printing & Updates | A major convenience upgrade! Print directly from a USB flash drive and easily update firmware without needing to manage small SD cards. |
Versatile Display Support | Compatible with a wide range of screens, including MKS TFT touchscreens (TS35/H43) and classic LCD12864, giving you flexibility in your printer’s user interface. |
Enhanced Safety & Reliability | Features upgraded protection circuits, including TVS and Schottky diode protection on heating and thermistor lines for stable, long-term operation. |
Open-Source Ready | Access to all necessary firmware source code and schematics on the official MKS GitHub allows advanced users to compile and fine-tune every parameter. |
Technical Summary
Chip: STM32F407VET6 (32-bit Cortex-M4, 168MHz)
Firmware: Marlin 2.0.x / Klipper Compatible
Driver Interface: Dedicated sockets for 5 stepper drivers (supporting UART/SPI)
Connectivity: USB-C, TF (SD) Card Slot, USB Disk Support, MKS Wi-Fi Module Interface
Power: 12V-24V Input
Heating: Supports 1 Heated Bed, 2 Hotends, and 3 Thermistor Inputs
Unlock the Potential of Your 3D Printer
Upgrade to the MKS Robin Nano V3.1 and experience the power, quietness, and advanced features required by modern 3D printing. It is the ideal control board for the dedicated maker who values performance and open-source customizability.
