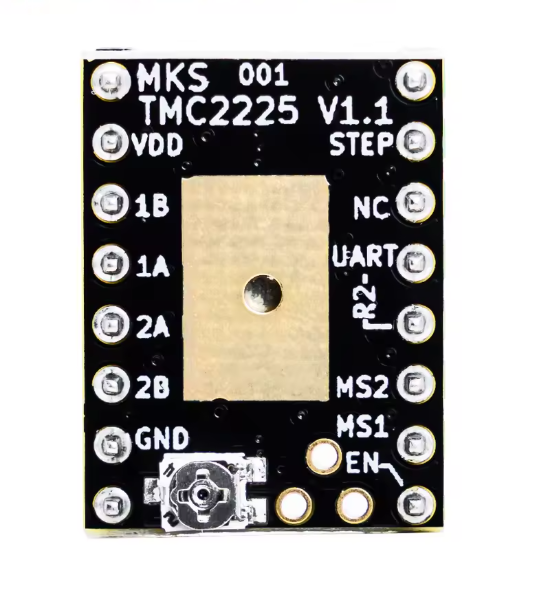

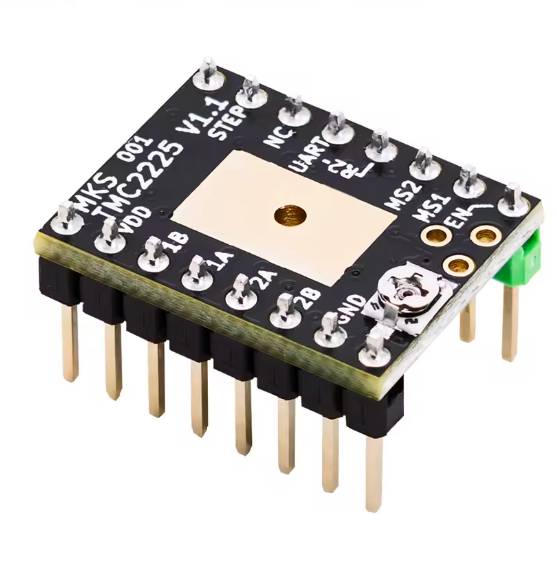

MKS TMC2225 V1.1 Driver: Silent Operation with Enhanced Thermal Management
Features Ultra-Quiet StealthChop™ and Robust Heat Dissipation, Ideal for High-Current, Continuous 3D Printing and CNC Applications.
€8.40
Introduction: The Thermally Optimized Upgrade for Silent Motion
The Makerbase MKS TMC2225 V1.1 is the perfect motion control solution for makers demanding both silence and reliability under heavy loads. Sharing the advanced features of the TMC2208, the TMC2225 chip is housed in a robust package designed for superior heat dissipation, making it an excellent choice for motors driving the X, Y, or Z axes on high-speed 3D printers and CNC machines.
Easily replacing older drivers like the A4988, the MKS TMC2225 V1.1 provides high current output and supports advanced functionality, ensuring your machine runs quieter, cooler, and with exceptional precision.
Key Features and Thermal Advantages
Technical Feature | Benefit for the Maker Community |

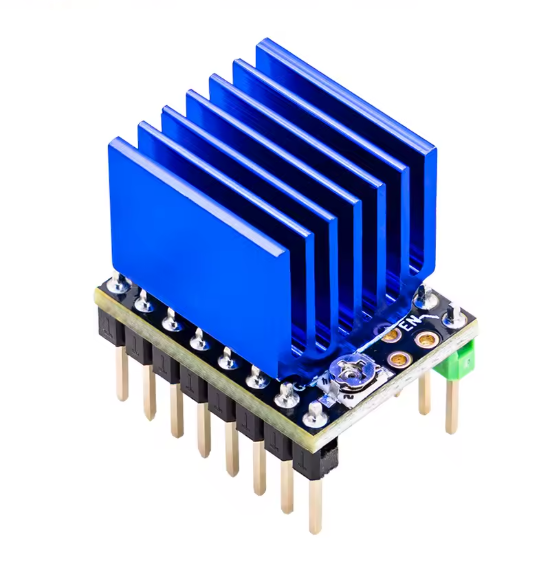

Optimized TMC2225 Package | The unique thermal pad on the chip underside allows for direct connection to the PCB or heatsink, significantly improving heat transfer and stability during long print jobs. |
StealthChop™ Silent Mode | Eliminates the harsh, audible noise of traditional motor drivers, creating a near-silent operating environment for your fabrication equipment. |
Up to 256 Microsteps | Internal MicroPlyer interpolation delivers 256 virtual microsteps from just 16 microsteps input, resulting in incredibly smooth, high-resolution motor movement. |
Superior Current Capacity | Supports up to 1.4A RMS continuous current (2.0A peak), providing ample power and torque for NEMA 17 stepper motors. |
UART Communication Ready | The V1.1 version supports UART mode, enabling dynamic firmware control (Marlin/Klipper) over crucial settings like current limit and microstepping selection without needing to adjust the potentiometer. |
Simple Installation | Designed to be pin-compatible with standard driver sockets, offering an easy and immediate silent upgrade path. |
Technical Summary
Chip: TMC2225 (Thermal-Enhanced Package)
Microsteps: 1/256 (via MicroPlyer)
Maximum Current: 1.4A (RMS) / 2.0A (Peak)
Voltage Range: 4.75V to 36V
Modes: STEP/DIR and UART Interface
Key Advantage: Enhanced heat dissipation for continuous high-load operation.
Experience Cooler, Quieter, and More Reliable Motion
Stop compromising on performance or noise. The MKS TMC2225 V1.1 offers the best of both worlds: the silence of StealthChop and the reliability of a thermally optimized design. Upgrade your axes today!
