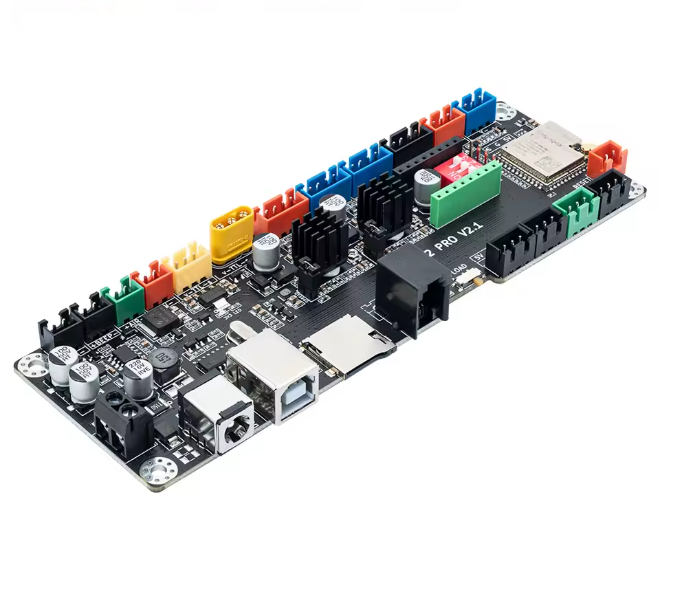

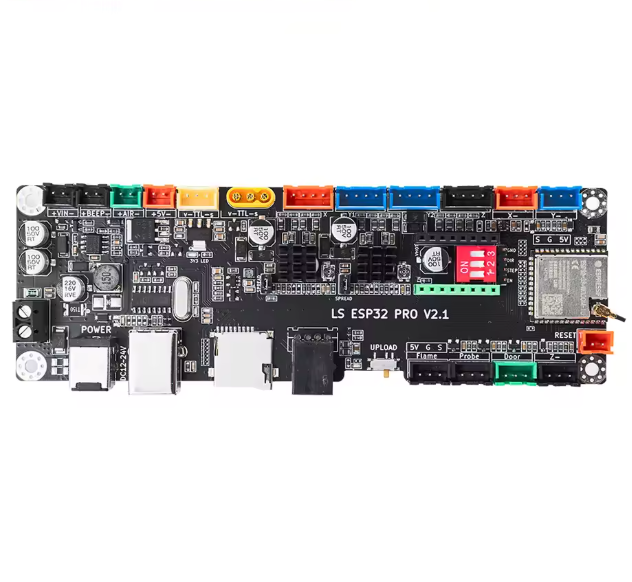

MKS LS ESP32 PRO V2.1: Open-Source GRBL Controller with Wi-Fi for Laser & CNC
High-performance controller board for 3D printers32-Bit Performance, Silent TMC2209 Drivers, and Advanced Multi-Link Safety for Your Connected Engraving Machine.
€39.90
Introduction: The 32-Bit Heart of Your Open-Source Machine
The MKS LS ESP32 PRO V2.1 is the next-generation 32-bit controller board your digital fabrication machines need to achieve peak performance and safety. Specifically designed for Laser Engravers and CNC Routers, this board combines the power of the ESP32 Dual-Core (240MHz) with advanced wireless connectivity, perfectly aligning with my-machines.net's commitment to high-performance, open-source hardware.
Key Features and Benefits for the Maker
Technical Feature | Benefit for the User |
ESP32 Dual-Core Processor | Ultra-fast processing speed (up to 240MHz) for smoother, more precise motion control. |
Integrated Silent TMC2209 Drivers | Provides whisper-quiet operation and high-precision movement on X, Y, and Z axes, with a 1.5A maximum current. |
Full Connectivity (Wi-Fi and Bluetooth) | Control your machine wirelessly via mobile apps or a PC web interface, eliminating the need for constant cable connection. |
Advanced Multi-Link Safety System | Includes essential safety features such as flame detection, tilt detection (requires external gyroscope), safety door alarm, and laser dwell prevention. Crucial for a safe home or educational workshop environment. |
Offline Engraving | Supports 3.5-inch touchscreens (TS35/TS24 - sold separately) and an SD card slot, allowing you to run jobs without a computer connection. |
Compatibility | Highly optimized GRBL firmware and seamless compatibility with popular software like LaserGRBL and LightBurn. |
Technical Specifications (Summary)
Main Chip: ESP32 Dual-Core 32-bit (240MHz)
Drivers: Integrated TMC2209 (X, Y, Z)
Input Voltage: 12V to 24V DC
Connections: USB-C, Wi-Fi, Bluetooth, SD Card Slot
Additional Support: Rotary Axis (Roll Axis), Air Assist, Endstops
Ready to Integrate into Your Open-Source Project
Whether you are building your custom My-Laser Engraver or upgrading an existing CNC, the MKS LS ESP32 PRO V2.1 offers the power and flexibility expected from an open-source component. Get your board now and unlock the true potential of your digital fabrication machine!
