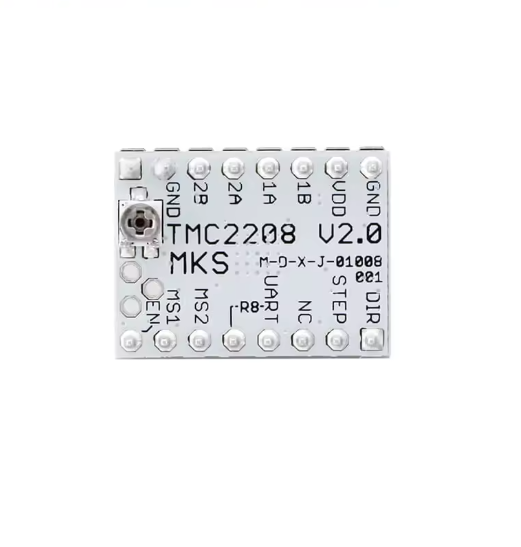

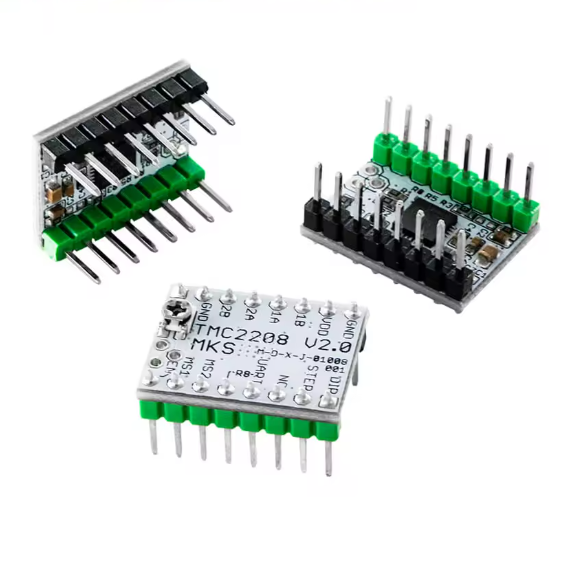

MKS TMC2208 V2.0 Stepper Motor Driver: Ultra-Silent Upgrade for 3D Printers & CNC
Features StealthChop™ Technology, 256 Microstep Interpolation, and UART Connectivity for a Quiet, High-Precision System.
€8.40
Introduction: The Secret to a Silent and Precise Machine
Say goodbye to the loud, droning noises of traditional 3D printers and CNC machines. The Makerbase MKS TMC2208 V2.0 Stepper Motor Driver is the most popular upgrade for makers seeking to drastically reduce noise levels while significantly improving print and cut quality.
Built around the Trinamic TMC2208 chip, this driver is a drop-in replacement for the older A4988, offering superior thermal performance and control features, making it an essential component for any open-source control board (like the MKS Robin Nano or SKR series).
Key Features and Performance Advantages
Technical Feature | Benefit for the Maker Community |
StealthChop™ Technology | Achieves ultra-silent operation by using current chopping optimized for low velocity, ideal for home and office environments. |
SpreadCycle™ Mode | A highly dynamic motor current control algorithm that ensures smooth motor movement during high-speed printing. |
Up to 256 Microsteps | The driver internally interpolates 16 microsteps into 256 microsteps (MicroPlyer), resulting in exceptionally smooth motion and better accuracy. |
UART Communication Support | The MKS V2.0 can be configured via the UART protocol, allowing you to dynamically adjust parameters like current limit and microstepping directly from the main control board's firmware (e.g., Marlin or Klipper). |
High Current Output | Capable of handling a continuous drive current of 1.4A (up to 2.0A peak), providing plenty of torque for NEMA 17 motors. |
Thermal Design | Comes with effective heat dissipation design, ensuring stable operation even under high load conditions. |
Technical Summary
Chip: TMC2208
Microsteps: 1/256 (via MicroPlyer interpolation)
Maximum Current: 1.4A (RMS) / 2.0A (Peak)
Voltage Range: 4.75V to 36V
Modes: STEP/DIR Interface (for standard use) and UART Interface (for advanced control)
Key Feature: StealthChop™ Silent Operation
Upgrade Your Machine to Silence and Precision
If silence and quality are priorities, the MKS TMC2208 V2.0 is the essential upgrade your machine needs. Easily swap out your old A4988 drivers and begin enjoying the benefits of Trinamic's advanced motion control technology today!
